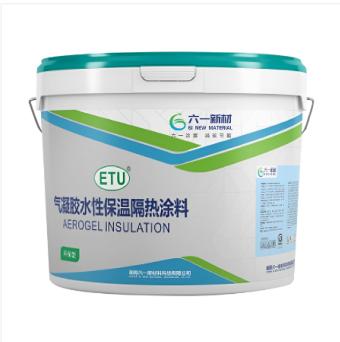

ETU Thermal Insulation and Decoration Integrated Coating

ETU Thermal Insulation and Decoration Integrated Coating

$0.00 USD
$0.00 USD
Sale Sold out

Product Introduction:

ETU Thermal Insulation and Decoration Integrated Coating currently achieves thermal insulation and energy-saving effects as a topcoat or intermediate coat for exterior walls. It can provide a rough surface finish through construction techniques or present as another form of thermal insulation and decoration integration. This is mainly reflected in areas with long sunlight duration, where a thickness of 1mm can achieve the same thermal insulation and energy-saving effect as a 35mm polystyrene board. In areas with short sunlight duration, the aerogel exterior wall coating only exerts its low thermal conductivity property.

Product Specifications:

Item Details
Product Name ETU Thermal Insulation and Decoration Integrated Coating
Model LYAC-D
Functions Thermal insulation, anti-detachment, flame retardant
Application Scope Internal and external thermal insulation for building exterior walls
Specifications 5L / 19L / 30L
Gloss Matte, color-adjustable / rough finish achievable
Theoretical Paint Consumption 1m²/L per coat (based on dry film thickness of 1mm)
Number of Coats 2-3 coats
Painting Area 28L covers approximately 28m²
Storage Notes Keep sealed, store at 5~35℃

Product Parameters:

Item Parameters Test Standard
Color White (adjustable) -
Thermal Conductivity [W/(m·K)] 0.03~0.035 GB/T 10295-2008 (Heat Flow Meter Method)
Density (g/cm³) 0.55~0.60 GB/T 1033-1986
Viscosity (KU) 120~130 GB/T 1723-1993
Water Resistance (h) 96, no abnormality DBJ43/T 371-2021
Alkali Resistance (h) 48, no abnormality DBJ43/T 371-2021
Tensile Strength (MPa) ≥1.0 DBJ43/T 371-2021
Adhesion (MPa) ≥0.4 GB/T 5210-2006
Artificial Weathering Resistance (h) 600, no blistering, peeling, or cracking DBJ43/T 371-2021

Application Recommendations:

Substrate Type Interlayer Structure Description
Leaking Concrete Substrate + waterproof coating + roof thermal insulation radiation coating Use transparent wear-resistant waterproof topcoat as needed; rusted iron sheets require rust conversion treatment.
Hollow Concrete Substrate + grouting material + alkali-resistant sealing primer + roof thermal insulation radiation coating -
Ordinary Concrete Substrate + alkali-resistant sealing primer + roof thermal insulation radiation coating -
Iron Sheet Roof Substrate + anti-rust primer + roof thermal insulation radiation coating -

Construction Methods:

Process Method Description
Brushing Brush in one direction, single-coat thickness <1mm Simple tools, easy to use, low material loss, low odor; poor flatness, low efficiency.
Scraping Scrape with screed for leveling, single-coat thickness <1mm Simple tools, easy to use, low material loss, low odor; difficult to construct on special-shaped components.
Roller Coating Roll in one direction, single-coat thickness <1mm Simple tools, easy to use, low material loss, low odor; surface shows three-dimensional rough texture.
Air Compressor Spraying (Atomization) Adjust viscosity to <130KU with water before use;
Air compressor pressure: 0.6-0.8MPa;
Nozzle diameter: 2.5-3mm;
Single-spray thickness ≤1mm		 Good atomization, smooth film surface; high material loss, high protection requirements.
Airless Spraying (Atomization) Single-spray thickness <0.5mm Good atomization, high construction efficiency; high protection requirements, small single-coat thickness.
